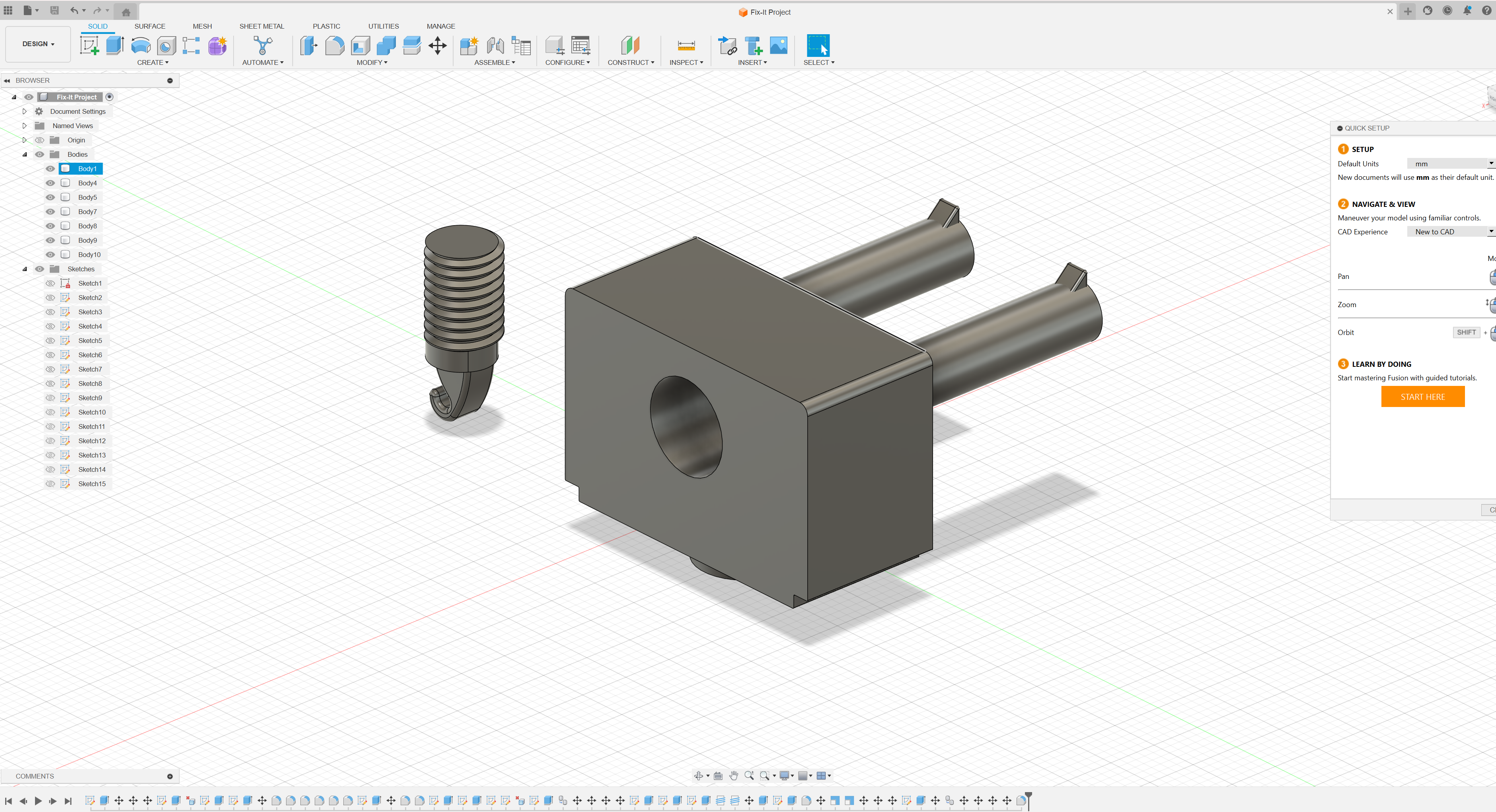

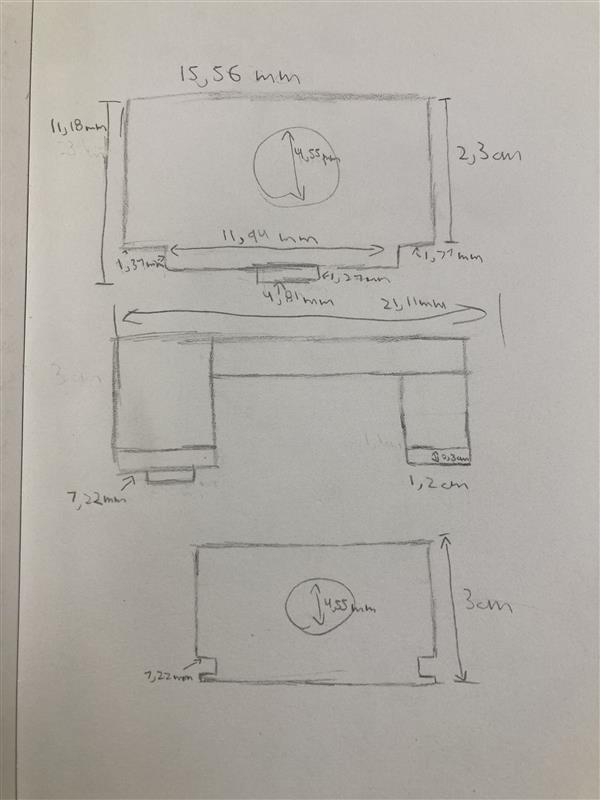

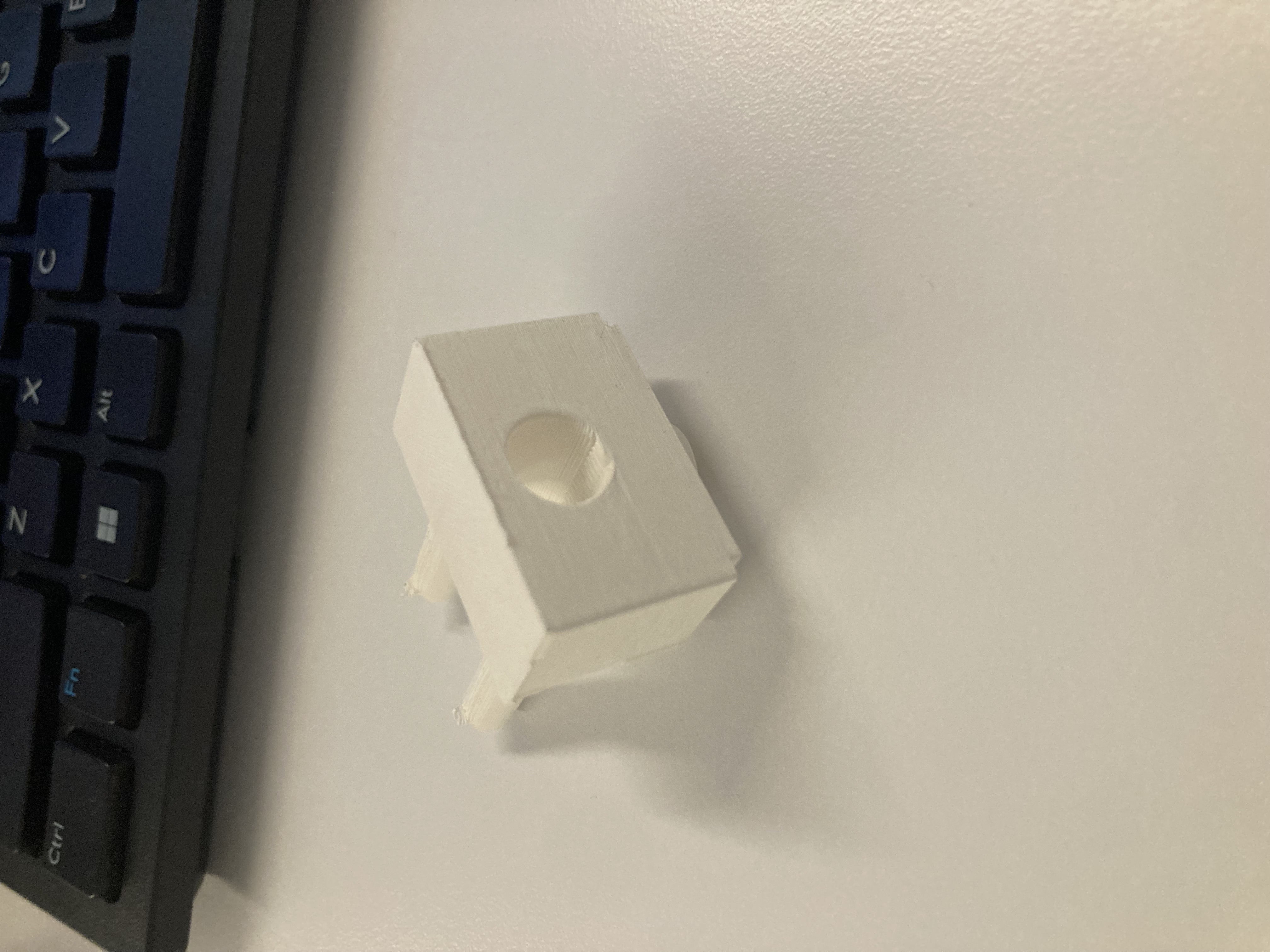

Here, I made a sketch for my wand control for the blinds. I also made rough measurements of the wand control so I can know what dimensions my object needs to be. Here is my full model. I started off by sketching a rectangle and punched 2 holes to it. The first hole is larger and it is meant to fit into the rod while the smaller hole is located at the bottom and it is meant for the hook. I then attached 2 cylinders at the back so it can attach to the blinds to slide forward and/or backwards. Here is my final product. The dimensions for the main body is okay but I made a lot of measurement errors. First of all, the 2 cylinders do not fit into the the 2 holes of the first blinds since they were too large and that the gap between them are off by a few milimeters. Second of all, the hook meant for the smaller hole does not fit. I made the threads too big. Lastly, the hook for the wand is just too small. The sketch I drew for the hook seems normal when I am in Fusion but when it was done printing, it is extremely small.
